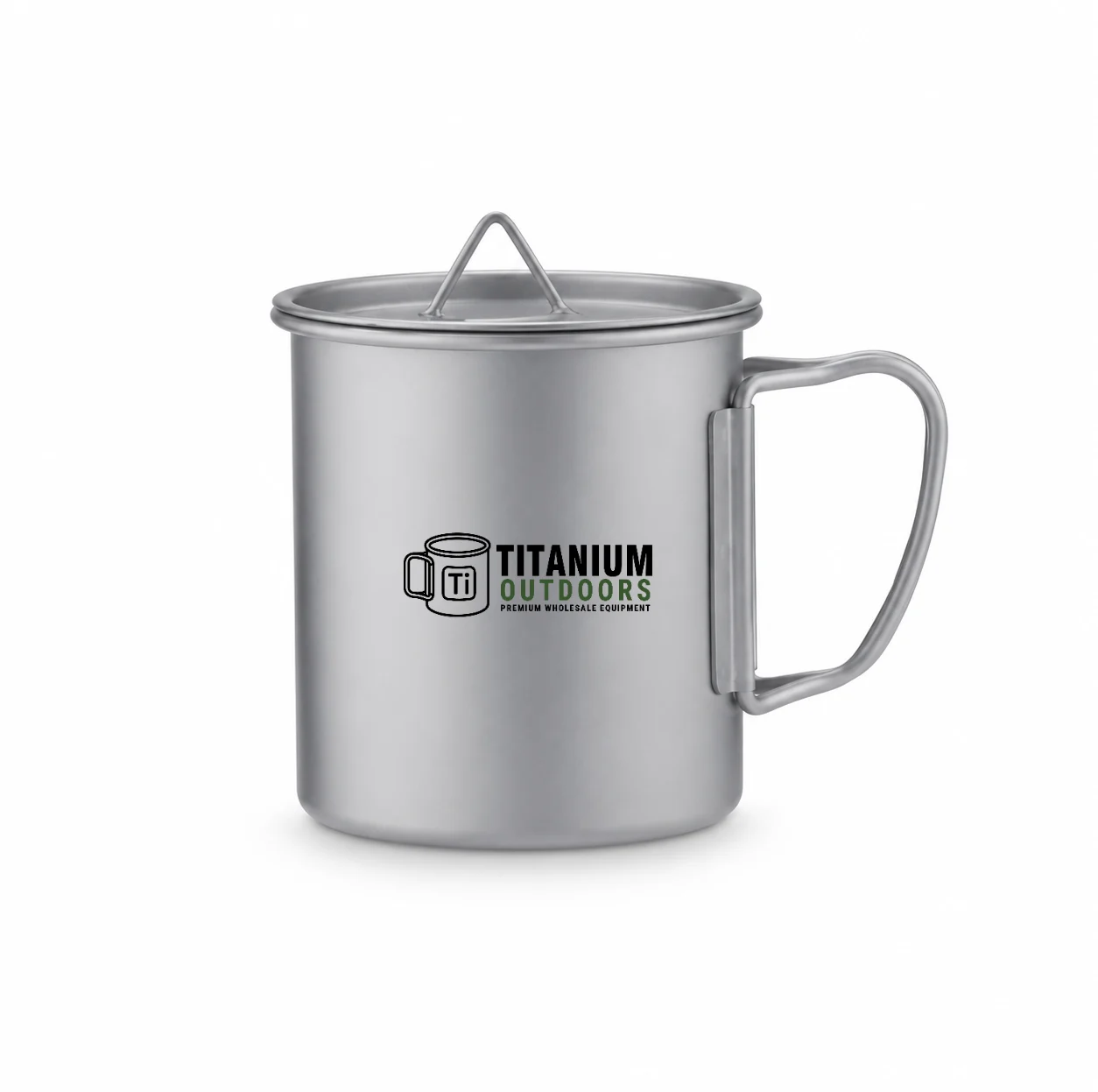

Grade 1 pure titanium single wall cup, 300 ml, angled handle, for wholesale and OEM supply.
Contact us for samples, bulk pricing, and OEM inquiry.
Grade 1 pure titanium single wall cup, 300ml capacity with an angled handle, cold-press formed from 0.4–0.6 mm titanium sheet (Ti ≥ 99.5%, ASTM F67). At 67 g, the cup weighs approximately 43% less than an equivalent stainless steel 304 vessel of the same capacity. Available for wholesale supply and OEM customization, with finish options spanning sandblasted matte, mirror-polished, and anodized colors.
The angled handle variant — with an offset-angle attachment point positioned slightly below the cup rim — is produced alongside classic folding and new-profile handle configurations, enabling brand buyers to specify handle style per SKU or mix handle types within a single order run. The 300 ml body is the smallest size in a full single-wall line covering 200 ml through 750 ml, supporting multi-size nesting sets for outdoor equipment distributors and lifestyle brand buyers.
| Specification | Details |
|---|---|
| Material | Pure Titanium Grade 1 (Ti ≥ 99.5%, ASTM F67) |
| Capacity | 300 ml (10.1 fl oz) |
| Weight | 67 g (classic handle); 67–74 g (angled handle variant) |
| Dimensions | Φ72 × H82 mm |
| Wall Type | Single Wall |
| Wall Thickness | 0.4–0.6 mm |
| Handle Style | Angled Handle (offset-angle, below-rim grip) |
| Finish Options | Sandblasted (Matte) / Mirror Polished / Anodized (Blue, Purple, Gold, Rainbow, Matte Black) |
| Direct-Flame Safe | Yes — no sealed air gap; compatible with camp stoves, alcohol burners, open flame |
| MOQ | 100 pcs (standard finish + logo); 200 pcs (anodized color); 500 pcs (custom geometry/ODM) |
| Sample Lead Time | 7–10 business days |
| Production Lead Time | 15–25 business days (standard run) |
The 300 ml cup body is deep-drawn from Grade 1 commercially pure titanium sheet (per ASTM B265), with a nominal wall thickness of 0.4–0.6 mm. Grade 1 is the softer, most ductile CP titanium grade — suited to thin-wall deep drawing without cracking — while maintaining sufficient structural integrity for single-wall drinkware in outdoor and everyday-carry applications.
At a density of 4.51 g/cm³ versus stainless steel 304 at 7.9 g/cm³, titanium delivers a 43% weight reduction at equivalent wall geometry. For end-user retail, this translates to the 300 ml cup sitting at 67 g — a weight-class advantage that outdoor, hiking, and ultralight brands use as a primary positioning metric.
The angled handle is laser-welded to the cup body in an argon-atmosphere environment. Titanium requires oxygen-free conditions during welding to prevent oxidation embrittlement; factories using standard stainless steel welding infrastructure cannot replicate this. Post-weld, each handle joint undergoes load testing. Cup bodies pass 100% leak inspection before surface finishing.
Titanium forms a stable, passive titanium dioxide (TiO₂) oxide layer on contact with air. This layer is chemically inert — non-reactive with acidic beverages (coffee, citrus juice, carbonated drinks) and alkaline liquids. No metallic taste transfer occurs under normal use conditions. The TiO₂ layer also serves as the substrate for anodized color finishes.
The 300 ml angled-handle cup is available for full OEM production, with customization options covering surface finish, branding, color, and retail packaging.
| Order Type | MOQ |
|---|---|
| Standard stock + laser logo | 50 units |
| Custom logo + packaging | 100 units |
| Custom anodized color | 200 units |
| Custom geometry / ODM | 500 units |
Sample lead time: 7–10 business days. Sample cost refundable against production orders above $1,000.
Payment terms: T/T (30% deposit, 70% balance before shipment), L/C available for orders above $10,000.
The 300 ml angled-handle cup serves as the compact SKU in titanium drinkware lines targeting four B2B channels:
Q: What titanium grade is used in this cup, and how does it differ from Grade 2?
Grade 1 commercially pure titanium (Ti ≥ 99.5% per ASTM F67) is the specified material. Grade 1 has lower yield strength (~170 MPa) compared to Grade 2 (~275 MPa), but greater ductility — a property required for deep-drawing thin-wall cup bodies without cracking. For single-wall drinkware at 0.4–0.6 mm wall thickness, Grade 1 is the standard material across the industry. Grade 2 is used in thicker-wall or cookware applications where higher strength is prioritized over formability.
Q: Can the cup be placed directly over an open flame or camp stove?
Single-wall construction contains no sealed air gap or vacuum layer, so there is no risk of thermal expansion deforming the cup under direct heat. The 300 ml cup is compatible with camp stoves, alcohol burners, Esbit solid fuel tablets, and open flames. This is the primary functional advantage over double-wall titanium cups, which cannot be placed on any heat source.
Q: What is the minimum order quantity for a custom logo and anodized color?
Custom laser-engraved logo on a standard sandblasted finish: MOQ 100 units. Custom anodized color (specified from the available range): MOQ 200 units. Custom Pantone-matched anodized color: MOQ 200–500 units depending on color complexity. Full ODM (custom geometry, non-standard capacity): MOQ 500 units with tooling cost.
Q: What handle options are available, and can multiple handle styles be combined in one order?
Three handle configurations are available for the 300 ml cup: Classic Folding Handle, New Design Handle, and Angled Handle. Mixing handle styles within a single order is possible from MOQ 100 units per style variant, subject to minimum per-variant quantities. Buyers building multi-product outdoor lines can order all three configurations in a single production run.
Q: How are anodized colors produced, and will they chip or wear off?
Anodized colors on titanium are produced by voltage-controlled electrochemical oxidation of the cup surface. The process grows the natural TiO₂ oxide layer to a precise thickness — different thicknesses refract different wavelengths of light, producing visible color. No dyes, paints, or coatings are applied. The color is integral to the oxide layer and cannot chip, peel, or flake. Laser engraving through the oxide layer exposes the bare titanium beneath, producing a bright silver contrast mark.
Q: What is the production lead time for a 500-unit custom order?
Standard run of 500 units with laser logo and custom packaging: 20–25 business days from order confirmation and artwork approval. Rush production (logo only, no custom packaging): 15–20 business days. Full ODM orders requiring new tooling: 35–45 business days. Air freight to most destinations: 5–7 business days additional.
Q: Does the 300 ml cup support nesting with other sizes?
The 300 ml cup body (Φ72 × H82 mm) nests inside the 450 ml cup (Φ80 × H98 mm) and the 750 ml cup (Φ95 × H110 mm), enabling a three-size nested stack. This reduces per-unit shipping volume by approximately 25–30% for buyers sourcing multi-size sets, and is a standard configuration for outdoor gear set assemblers and subscription box curators.
All customization options available for bulk orders. Contact our export team for detailed specifications and pricing.
Laser engraving of logos, text, and graphics directly onto the titanium surface. Permanent, precise, and available from 200 pcs per design.
Electrochemical anodizing in a range of colors. Food-safe, no coating or paint involved. Available in 6 standard colors plus custom matching from 500 pcs.
Full OEM packaging design service covering retail boxes, pouches, hang-tags, and insert cards. We work with your brand guidelines to produce shelf-ready packaging for retail, e-commerce, and gifting markets. Includes barcode setup, product photography coordination, and export carton configuration for bulk shipments.
